Custom Optical Components

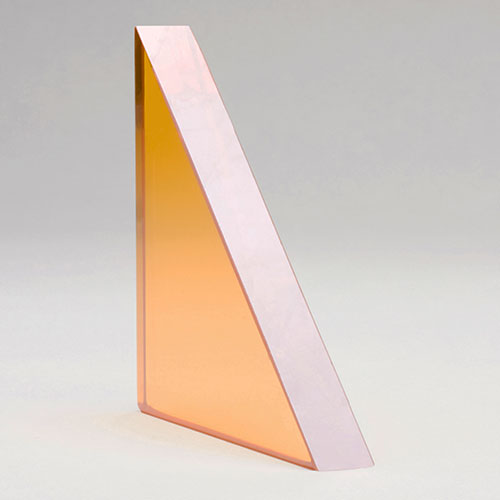

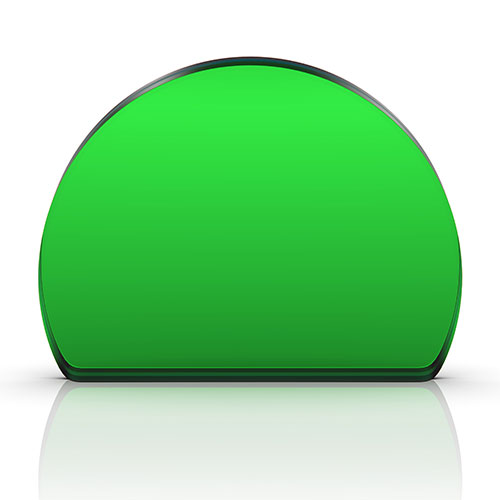

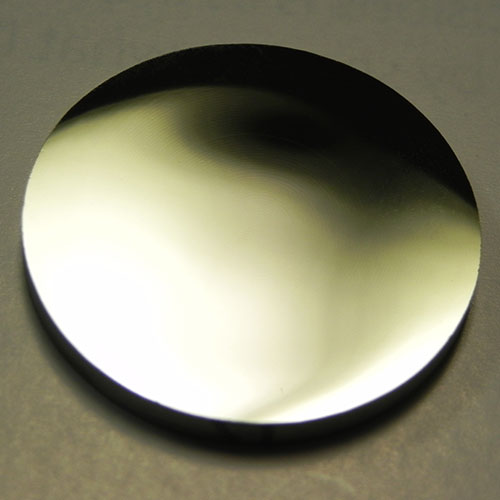

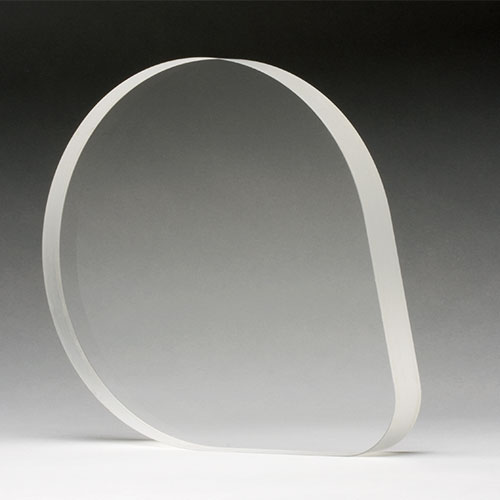

Reynard Corporation has a full service, in-house optical fabrication facility designed to meet your precision optical requirements. Our CNC mills allow us to shape many custom shapes and sizes to meet your specifications. We have over 40 years of experience in fabricating optical components and will work closely with you to reach your custom specifications.
• Windows, Wedges, Precision Flats
• CNC Shaping, Edging, Grinding and Wafer Dicing
• Dedicated III-V Material Processing Area
• AMTIR, Chalcogenides, Fused Silica, Ge, InAs, InP, N-BK7, Si, ZnS, ZnSe +
• Non-Linear (Binary and Ternary) Semi-Conductor Materials
• Magnetorheological Finishing (MRF)
All optical elements are thin film designed, manufactured, and tested in-house.
ISO 9001:2015 certified and ITAR registered.
Contact us with your custom requirements!
GENERAL CAPABILITIES
- ISO 9001:2015 Certified
- ITAR Registered
- Cybersecurity Compliant
- UV-VIS, NIR, IR, Far IR
- Miniature to Over 30” Diameter
- Build to Print
- Precision Flats and Plano
- Elliptical and Spherical
- Quality Control Inspection
- MIL-PRF-13830B and MIL-C-48497A
- In-House Environmental Testing
- Made in USA
OPERATIONAL CAPABILITIES
- CNC Shaping
- Polishing (1/20 wave)
- Grinding (1mm to 450mm)
- Beveling (down to a few thousandths of an inch)
- Core Drilling (glass, metals & ceramics)
- Cutting (1mm-300mm)
- Edging (a few ten thousandths of an inch)
- Stacking and Bonding
- Wafer Dicing
- Non-Linear (Binary and Ternary) Semi-Conductor Materials
- Dedicated III-V Material Processing Area
- Windows, Wedges, Precision Flats
MATERIALS
- AION
- AMTIR 1-5
- Barium Fluoride (BaF2)
- Borosilicate Crown Glass (N-BK7)
- Calcium Fluoride (CaF2)
- Ceramics
- Chalcogenides
- Cleartran (multi-spectral)
- Crystals
- Fused Silica (SiO2)
- Gallium Arsenide (GaAs)
- Germanium (Ge)
- Indium Arsenide (InAs)
- Indium Phosphide (InP)
- Magnesium Fluoride (MgF2)
- Mercury Cadmium Telluride (MCT)
- Metal
- Plastic
- Sapphire (Al2O3)
- Silicon (Si)
- Zinc Selenide (ZnSe)
- Zinc Sulfide (ZnS)
